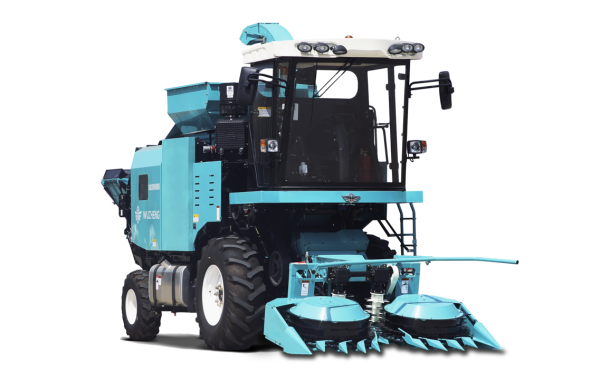

M2600收获打捆一体为国内首创的收割打捆一体化作业设备，面向中小型肉牛养殖，解决干秸秆饲喂营养不足或青贮制备难题，形成国内领先的鲜秸秆裹包解决方案。
参考价： 面议
价格说明
了解贷款
M2600收获打捆一体为国内首创的收割打捆一体化作业设备，面向中小型肉牛养殖，解决干秸秆饲喂营养不足或青贮制备难题，形成国内领先的鲜秸秆裹包解决方案。收获与打捆一体作业，可实现玉米等青绿植物直接切短与密封的复合作业，快速锁鲜，有利于最大限度保留植物营养，为草食动物提供营养可靠的饲草。青饲料收获打捆后，配合包膜作业，3分钟内就可完成青饲料的密封，保证青饲料的品质。
Product highlights:
The M2600 integrated harvester-baler is China’s first machine designed specifically for small to medium-scale beef cattle farms. It solves the twin problems of low-nutrient dry straw and complex silage-making, delivering a leading-edge solution for fresh straw baling. The integrated harvesting and baling operation enables the simultaneous chopping and sealing of silage crops like corn, quickly locking in freshness. This process maximizes nutrient retention, ensuring nutritionally reliable forage for herbivores. Once silage is harvested and baled, the subsequent wrapping and sealing process can be completed within 3 minutes, ensuring optimal feed quality.
● 收获打捆一体作业，直接出捆，无需配套接料车。
● The integrated harvester-baler produces finished bales directly in the field, eliminating the need for a supporting forage wagon.
● 对辊式籽粒破碎，破碎率可达98%以上。
● The double-roller grain crushing mechanism provides a crushing rate of above 98%.
● 可搭配多种割台，收获多种作物。
● It can be equipped with various headers to harvest multiple types of crops.
| 项目 | 单 位 | 设计值 |
| Item | Unit | Design Value |
| 型号名称 | / | 4QZ-M2600型自走式青饲料收获机 |
| Model and Designation | 4QZ2600 self-propelled silage harvester | |
| 形式 | / | 自走式 |
| Type | Self-propelled | |
| 工作状态外形尺寸（长×宽×高） | mm | 7485×2800×3100 |
| Overall dimensions in working state (L × W × H) | ||
| 配套动力范围（牵引式、悬挂式） | kW | / |
| Supporting power range (traction type and suspension type) | ||
| 配套发动机额定功率（自走式、配有发动机的牵引式） | kW | 206 |
| Rated power of supporting engine (self-propelled type and traction type equipped with engine) | ||
| 配套发动机额定转速（自走式、配有发动机的牵引式） | / | 2200 |
| Rated speed of supporting engine (self-propelled type and traction type equipped with engine) | ||
| 割幅 | mm | 2600 |
| Cutting width | ||
| 作物收集割台型式 | / | 直切割台 |
| Header type | Straight cutting header | |
| 割台切割器型式 | / | 圆盘式割刀 |
| Type of header cutter | Disc-type cutter | |
| 喂入机构型式 | / | 喂入辊 |
| Type of feeding mechanism | Feed roller | |
| 喂入机构数量 | / | 5 |
| Number of feeding mechanisms | ||
| 秸秆切碎机构型式 | / | 滚筒式 |
| Type of straw shredding mechanism | Drum type | |
| 籽粒破碎机构型式 | / | 对辊式 |
| Type of grain crushing mechanism | Double-roller type | |
| 驾驶室型式(自走式） | / | 普通驾驶室 |
| Cab type (self-propelled) | Ordinary cab | |
| 变速方式(自走式） | / | 手动变速 |
| Transmission (self-propelled) | Manual transmission | |
| 驱动方式(自走式） | / | 液压驱动 |
| Drive mode (self-propelled) | Hydraulic drive | |
| 制动器型式(自走式） | / | 盘式 |
| Brake type (self-propelled) | Disc type | |
| 导向轮轮距（自走式） | mm | 1900 |
| Guide wheel track (self-propelled) | ||
| 导向轮轮胎规格（自走式） | / | 11.2-20 |
| Guide wheel tire specification (self-propelled) | ||
| 驱动轮轮距（自走式） | mm | 1770 |
| Driving wheel track (self-propelled) | ||
| 驱动轮轮胎规格（自走式） | / | 15-24 |
| Driving wheel tire specification (self-propelled) | ||
| 履带宽度(自走式） | mm | / |
| Track width (self-propelled) | ||
| 履带接地长(自走式） | mm | / |
| Ground contact length of track (self-propelled) | ||
| 轨距(自走式） | mm | / |
| Track gauge (self-propelled) | ||
| 轴距(自走式） | mm | 2830 |
| Wheelbase (self-propelled) | ||
| 作业速度范围 | km/h | 0-10 |
| Operating speed range | ||
| 设计切段长度 | mm | 17 |
| Designed cutting length |
